500*3500mm Mesh 1 Micron Stainless Steel Wire Mesh Ultra Fine Dutch Weave
Product Description

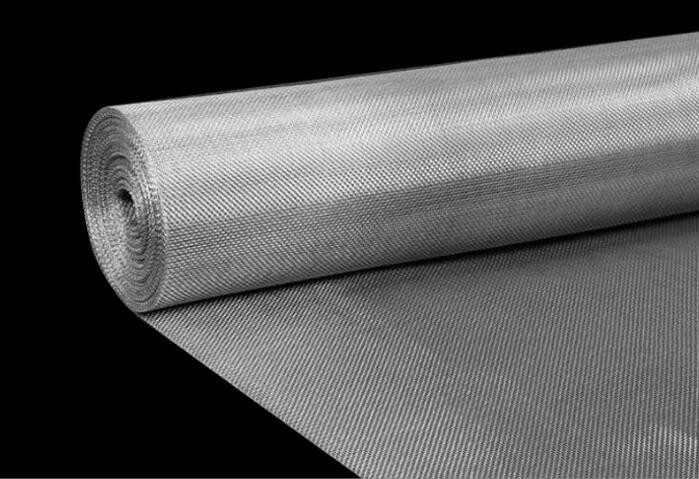

Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.
Many different grades of stainless are used in wire cloth.T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining, chemical industry, food industry and pharmaceutical industry.

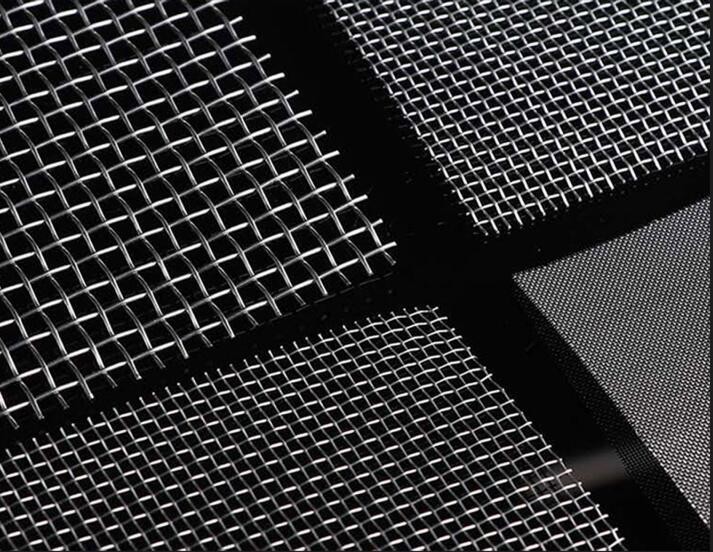

We offer a variety of stainless mesh weave designs, styles and dimensions to fulfill your requirements. Our stainless-steel screen is easy to install, easy to maintain, and is a cost-effective solution for multiple steel applications.The weave styles mainly depend on the mesh and wire diameter specifications of the woven mesh.
The product has the characteristics of acid and alkali resistance, temperature resistance, wear resistance and other properties,therefore, in recent years, stainless steel net is widely used in many different fields.
Parameter
| Stainless steel wire mesh plain weave |
| Mesh | Wire diameter(mm) | Opening(mm) | Material(AISI) |
| 7*7 | 1.0 | 2.63 | 304 or 316 |
| 10*10 | 0.6 | 1.94 | 304 or 316 |
| 12*12 | 0.5 | 1.62 | 304 or 316 |
| 16*16 | 0.4 | 1.19 | 304 or 316 |
| 18*18 | 0.35 | 1.06 | 304 or 316 |
| 20*20 | 0.35 | 0.87 | 304 or 316 |
| 24*24 | 0.26 | 0.8 | 304 or 316 |
| 30*30 | 0.3 | 0.55 | 304 or 316 |
| 35*35 | 0.17 | 0.56 | 304 or 316 |
| 40*40 | 0.23 | 0.4 | 304 or 316 |
| 50*50 | 0.2 | 0.31 | 304 or 316 |
| 60*60 | 0.15 | 0.27 | 304 or 316 |
| 70*70 | 0.12 | 0.24 | 304 or 316 |
| 80*80 | 0.13 | 0.19 | 304 or 316 |
| Stainless steel wire mesh and cloth twill weave |
| Mesh | Wire diameter(mm) | Opening(mm) | Material(AISI) |
| 250*250 | 0.04 | 0.063 | 316 |
| 300*300 | 0.04 | 0.044 | 316 |
| 325*325 | 0.035 | 0.043 | 316L |
| 350*350 | 0.03 | 0.033 | 316L |
| 400*400 | 0.03 | 0.033 | 316L |
| 450*450 | 0.028 | 0.028 | 316L |
| 500*500 | 0.025 | 0.026 | 316L |
| Stainless steel wire mesh and cloth dutch weave |
| Mesh | Wire diameter(mm) | Material(AISI) |
| 12*64 | 0.58*0.4 | 304 or 316 |
| 24*110 | 0.36*0.25 | 304 or 316 |
| 14*88 | 0.5*0.33 | 304 or 316 |
| 30*150 | 0.23*0.18 | 304 or 316 |
| 40*200 | 0.18*0.13 | 304 or 316 |
| 50*250 | 0.14*0.11 | 304 or 316 |
| 80*700 | 0.1*0.08 | 304 or 316 |
| 165*800 | 0.071*0.04 | 304 or 316 |
| 165*1400 | 0.06*0.04 | 304 or 316 |
| 200*1800 | 0.05*0.032 | 304 or 316 |
| 825*2300 | 0.035*0.025 | 316 L |
| 400*2800 | 0.03*0.02 | 316 L |
Advantages
Due to its own characteristics of stainless steel, the stainless steel mesh processed has high wear resistance, long service life,accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness, anti static, anti-acid and alkali resistance Corrosion.
Application
Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc.
About us

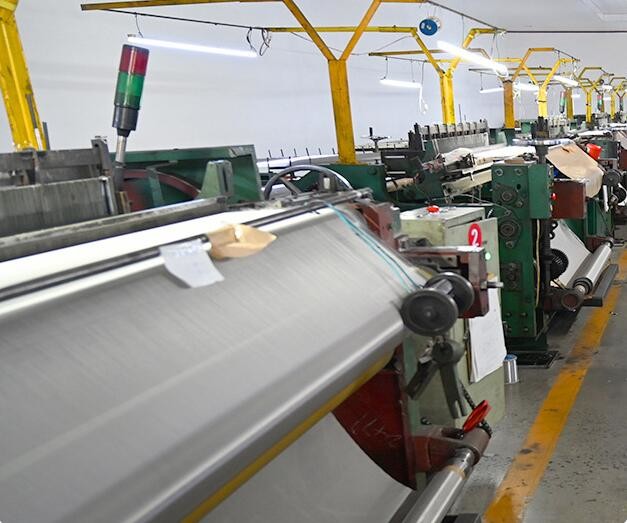

Our factory located in Anping County,China .It covers more than 20000 sqm now . We have three different workshops for producing different products .
Dedicated to unparalleled service, we serve our customers and ship from three factories (it totally covers more than 5000 sqm now) located throughout the region to ensure prompt response to all inquiries and orders . Each factory offers local design, engineering, sales and fabrication services, complete inventories and coordinated delivery to ensure your project meets deadline.
